| Mozilla Foundation Browsers: |
The Mozilla Foundation has released three browsers covered in this tutorial:
-
 |
Mozilla: This was the first
open source browser released from the Netscape group. Mozilla is no
longer developed. The follow-on project which develops an integrated
web browser, HTML editor, email client, address book and chatzilla
client is SeaMonkey. |
 |
SeaMonkey: Integrated web application suite (browser, html editor, email) derived from the former Mozilla source code but updated with Firefox components. |
 |
Firefox: A high performance, feature rich, standards based web browser. |
| Mozilla and Firefox Installation: |
- YUM: yum -y install firefox
- RPM: rpm -ivh firefox-1.XXX.YYY.rpm
- RPM: rpm
-ivh mozilla-1.7.XXX.YYY.rpm mozilla-mail-1.7.XXX.YYY.rpm
mozilla-dom-inspector-1.7.XXX.YYY.rpm mozilla-nss-1.7.XXX.YYY.rpm
mozilla-nspr-1.7.XXX.YYY.rpm mozilla-nspr-1.7.XXX.YYY.rpm
mozilla-js-debugger-1.7.XXX.YYY.rpm
- APT: apt-get install mozilla-thunderbird
| View Browser Configuration: |
List available options. Type the URL: about:config
This will allow you to modify the
advanced configuration options found in the various Mozilla
configuration files. Right click on the value to alter and a dialog box
will appear to allow changes.
-
The preferences are stored in the file /home/user-id/.mozilla/firefox/..../prefs.js.
| Mozilla / Firefox Environment Variables: |
-
| Environment Variable |
Description |
| MOZILLA_FIVE_HOME |
Home directory path for browser |
| MOZILLA_PLUGIN_PATH |
Directory path for browser plug-ins.
(Often $MOZILLA_FIVE_HOME/plugins) |
-
Proxy configuration: Many corporate networks rely on SOCKS proxy servers
for access to the internet. Typically a Proxy Auto Configuration (PAC)
script is issued to be registered
with the browser. These scripts are usually targeted to Microsoft
Explorer of Netscape Navigator (4.x) specifically. Try the proxy script:
"Edit" + "Preferences" and select "Advanced (+)" and "Proxies" +
"Automatic proxy configuration URL", enter the script location
and select the "Reload" button.
If it works, great your ready to surf.
If your corporation uses a proxy directly, enter it under "Manual
proxy configuration".
If using a script and it does not work, use the command
"wget http://proxy-url.domain.com/proxy-script.pac" to
download the proxy script. Examine the file proxy-script.pac.
Burried in the logic of the script is usually the explicit listing of a
proxy server which can be entered under the Mozilla manual configuration.
If you are at a corporation using a firewall and have direct access,
I'm jealous and you have no need for proxy configuration.
Firefox extensions are supplemental programs which are installed within
Firefox from the Mozilla web site. Extensions are available for
Blogging, Web Developer Tools, Dictionaries, Download Tools,
Editing and Forms, Image Browsing, Kiosk Browsing Languages,
Message Reading, Navigation,
News Reading, Privacy and Security, Search Tools,
Website Integration, XUL Applications, ...
To add an extension:
- Allow the extensions website to install software:
Select "Edit" + "Preferences" (or "Tools" + "Options" on newer systems)

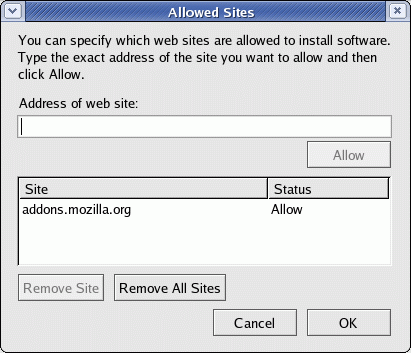

Check "Allow web site to install software" then
press the corresponding "Allowed Sites" button. |
Enter the "allowed" site. |
|
|
- Select and install an extension: Select "Tools" + "Extensions" + "Get more extensions".
This brings up a web page from which you may choose the extension which suits your needs.
| Configuring Java support: |
Install Sun SDK (1.6): See Java SDK download/install
(J2RE: JAVA 2 Runtime Environment RPMs for Mozilla)
Mozilla and SeaMonkey Configuration:
-
Java VM support:
- Java (generic):
- x86_64: ln -s /usr/java/latest/jre/lib/amd64/libnpjp2.so /usr/lib64/mozilla/plugins/
- i386: ln -s /usr/java/latest/jre/plugin/i386/ns7/libjavaplugin_oji.so /usr/lib/mozilla/plugins/
(Where the "latest" directory is another soft link which points to a specific release. The Java 1.6 RPM configures itself this way.)
- Java 1.6 (i386): ln -s /usr/java/jdk1.6.0/jre/plugin/i386/ns7/libjavaplugin_oji.so /usr/lib/mozilla/plugins/
- Java 1.5 (i386): ln -s /opt/jdk1.5.0_07/jre/plugin/i386/ns7/libjavaplugin_oji.so /usr/lib/mozilla/plugins/
- Java 1.4 (i386): ln -s /usr/java/j2sdk1.4.1_02/jre/plugin/i386/ns610/libjavaplugin_oji.so /usr/lib/mozilla-1.0.2/plugins/
Supports mime type: application/x-java-vm
(Required for Microsoft Exchange OWA webmail support.)
If the directory /usr/lib/mozilla/plugins/ does not exist, create it or use the directory which explicitly states your version of Mozilla. i.e.: /usr/lib/mozilla-1.0.2/plugins/. Installing the "plugger" RPM will generate the directory /usr/lib/mozilla/plugins/.
Restart the browser to pick-up the new plug-ins. Verify with the URL "about:plugins".
[Potential Pitfall]: Many versions of the
Java shared object plugin libjavaplugin_oji.so may crash your version of Mozilla.
The one listed above will work.
Also see: MIT: Web browser Java Plugin issues
Java web start configuration: Application handler for mime type: application/x-java-jnlp-file
JNLP: Java Network Launching Protocol
Java applets run within the browser controlled environment but JNLP applications do not.
JNLP applications run in the same sandbox as applets, with several minor extensions like allowing them to load and save files explicitly selected by the user.
Only signed applications can be configured to have additional or even all permissions.
Some benefits of JNLP include seamless version updating of internet distributed applications and greater control of memory allocation to the Java virtual machine.

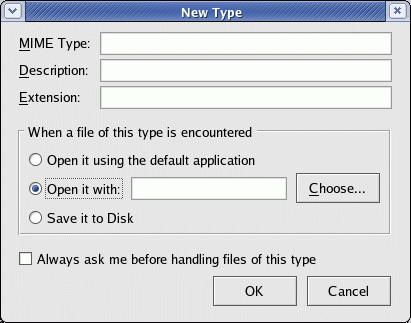

Configure: Edit + Preferences + choose: Navigator + Helper Applications
-
Description: Java Web Start
Suffix/extension: jnlp
Mime Type: application/x-java-jnlp-file
Application: /usr/java/latest/bin/javaws
|
If using OpenJDK use: /usr/bin/javaws
Note: later versions of Firefox do not allow you to add application handlers until needed.
-
- Select a "JNLP" webstart application on the web (eg. WorldWind example apps).
- Select the pull-down menu for "Open with" and select:
- "other..."
or if it is an option, the default
- "Browse..."
- Enter: /usr/java/latest/bin/javaws
- Ok
| Firefox, Mozilla and SeaMonkey Plug-ins: |
Plug-ins display various media types within a web page or if a link to
a media file, it can display the content within the browser window.
While there are many browsers available for Linux, most plug-ins conform to the
Netscape 4 plug-in architecture. Thus this tutorial should apply to most
Linux web browsers.
List active plug-ins, type the URL: about:plugins
Note: Restart the browser before using a newly installed plug-in.
The browser must be restarted to be aware of the new plug-in.
Plug-ins are located in:
- System wide availablility:
- /usr/lib/mozilla/plugins/
Note: On older 64 bit systems this directory held 32 bit plug-ins.
On Ubuntu 11.04 this directory holds 64 bit plug-ins and /usr/lib64/ is a soft link to /usr/lib/
- 32 bit: /usr/lib32/mozilla/plugins/
- 64 bit: /usr/lib64/mozilla/plugins/
- Available to the local user: ~/.mozilla/plugins/
On my system this holds 32 bit libraries although this may not be the rule.
Downloads: The easiest way to download the appropriate
components is with the YUM, the "Yellow Dog" network RPM package
installer. See YoLinux tutorial on YUM configuration
and how to add the FreshRPM.net site to your download list which will
allow you to have access to the media player applications which are not
included in the base install.
| Universal Application Plug-ins: |
These universal plug-ins can accept extenstion to handle other media types by making additions to the mozplugger (or plugger) configuration file /etc/mozpluggerrc (or /etc/pluggerrc) and installing the application.
- MozPlugger: (current Linux distributions and browsers)
Home page and downloads:
http://mozplugger.mozdev.org/
Current Linux distributions have a general media plug-in manager called mozplugger which replaces the older plugger.
Config file: /etc/mozpluggerrc
Plugins directory: /usr/lib/mozilla/plugins
(x86_64: /usr/lib64/mozilla/plugins)
Note that you may have to extablish a soft link for Firefox upgrades.
i.e.: ln -s /usr/lib/mozilla/plugins/mozplugger.so /opt/firefox/plugins
This plugin uses various Linux media viewers for display of various mime types within mozilla.
Installation:
- RPM based OS: YUM install: yum -y install mozplugger
(Red Hat Enterprise Linux/Fedora 1-9/CentOS)
- Debian/Ubuntu: APT install: apt-get install mozplugger
- Plugger: (legacy Red Hat 7-9.0)
Home page and downloads: http://fredrik.hubbe.net/plugger.html
Plugger is a Mozilla plug-in that ties many of the Linux applications to
Mozilla so that they can be viewed within the browser rather than by launching
a separate "helper" application.
The plugin "plugger" installs with Red Hat 7-9 and handles most of the
file types including pdf (requires xpdf or evince), Postscript (requires ggv. Note older versions of Linux used gv ghostview. Newer versions tend to use ggv Gnome ghostview.),
mpeg (requires xanim), avi (requires xine or mplayer. If using xine, use "xine -p".),
midi (timidity), wav (play), tiff (eog), bmp (eog), ...
Plugger has the following media player dependencies: xloadimage (view image in X11 display),
sox (sound sample translator) and mikmod (play soundtrack).
These should be part of the Linux installation.
Plugger will handle the following mime types: wav, midi, mpeg, mov, avi, png, tiff, bmp, pdf, ps, wav, au, mp3 etc.
(partial list) [Description - suffixes man page]
Plugger is configured to use the following applications: eog, xpdf, ggv, play, playmidi,
xanim, xine, mtvp, timidity, xmp, mikmod, mpg123, xloadimage and display.
Download the Mozilla plug-in, plugger (rpm) - part of Red Hat Linux base OS
i.e.: http://mirrors.usc.edu/pub/linux/distributions/redhat/redhat/linux/9/en/os/i386/RedHat/RPMS/plugger-4.0-23.i386.rpm (RH 9.0)
Download media support application RPMs:
If the audio file plays back
at too high a speed, then use esdplay instead of play.
While Plugger is pre-configured to handle many mime types, there are gaps
in format coverage. See file: /etc/pluggerrc for mime types and
applications configured to work with plugger.
Adding applications to /etc/pluggerrc
-
..
...
application/vnd.ms-excel: xls, xlb: Microsoft Excel Document
nokill exits: oocalc "$file" - Add this line
repeat swallow(PluggerGnumeric) fill: gnumeric --class PluggerGnumeric "$file"
...
..
|
Note: This seems to have been an oversight in Red Hat 9.0, plugger-4.0-23.
Fix for Red Hat 8.0/9.0. The postscript viewer gv (ghostscript) has
been supersceded by ggv (Gnome ghostscript) Update plugger reference
by changing all references of gv to ggv:
-
..
...
application/pdf: pdf: PDF file
application/x-pdf: pdf: PDF file
text/pdf: pdf: PDF file
text/x-pdf: pdf: PDF file
repeat swallow(documentShell) fill: acroread -geometry +9000+9000 -xrm '+useFrontEndProgram' "$file"
repeat swallow(Xpdf) fill: xpdf -g +9000+9000 "$file"
repeat swallow(ggv) fill: ggv -safer -quiet -antialias -geometry +9000+9000 "$file" 2>/dev/null
...
...
application/x-postscript: ps: PostScript file
application/postscript: ps: PostScript file
repeat swallow(ggv) fill: ggv -safer -quiet -antialias -geometry +9000+9000 "$file" 2>/dev/null
repeat swallow(Pageview) fill: pageview "$file"
...
..
|
After making changes to the plugger configuration file (/etc/mozpluggerrc or /etc/pluggerrc), remove the following auto generated configuration file (various names have been used) and restart the browser.
- ~/.mozilla/firefox/pluginreg.dat
- ~/.mozilla/pluginreg.dat
- ~/.netscape/plugin-list
Note that web server support for additional mime types is added to /etc/mime.types or can be added with the directive "AddType" in the Apache httpd configuration file httpd.conf. Restart the httpd daemon after any configuration change.
- Adobe/Macromedia Flash Player:
Fully supports: Mozilla 1.0+, Netscape 7.x, Firefox 0.8+, SeaMonkey
Flash Player Page:
[Flash Player Download (10)]
Installation:
(from downloaded package)
- RPM: rpm -ivh flash-plugin-xxx.xxx.i386.rpm
or
- tar.gz file:
- Exit browser.
- Download:
install_flash_player_10_linux.tar.gz
- Uncompress/install:
-
tar xzf install_flash_player_10_linux.tar.gz
cd install_flash_player_10_linux
./flashplayer-installer
Notes:
- If plugger RPM is installed, it will generate the directory
/usr/lib/mozilla/plugins and you can install the flash plugins there.
If not you can create the directory or use the existing Mozilla directory
/usr/lib/mozilla-1.X.X/plugins/.
- Note that you may have to extablish a soft link for Firefox upgrades.
i.e.: ln -s /usr/lib/mozilla/plugins/libflashplayer.so /opt/firefox/plugins
or ln -s /usr/lib/flash-plugin/libflashplayer.so /opt/firefox/plugins
- Restart browser.
Or install from internet repository:
- YUM: YUM install: yum -y --enablerepo=flash install flash-plugin
or
- Ubuntu/Debian APT: apt-get install flashplugin-mozilla
(Install required directory structure: apt-get install flashplugin-nonfree)
Notes:
- More Linux flash info available from: http://macromedia.mplug.org/
- The Flash installer also installs fonts: ttfonts and urw-fonts
- See the included Readme.txt for details.
- Flash will utilize the language environment variable LANG.
(Valid English LANG= C, POSIX or any with the prefix "en_". See readme.txt
for more details.)
- Help: http://www.adobe.com/community/flash/
- Privacy:
Mime types: (No configuration required by user)
Description: Futuresplash
File extension: spl
Mime Type: application/futuresplash
Plug-in:
Description: Shockwave Flash
File extension: swf
Mime Type: application/x-shockwave-flash
Plug-in:
|
For more Flash info and links
including development of an open source Flash player and tools.
[Potential Pitfall]: Install fails
-
install of flash-plugin-9.0.31.0-release conflicts with file from package flash-plugin-7.0.25-1
Remove old version first: rpm -e flash-plugin-7.0.25-1
[Potential Pitfall]: Install script fails.
Create directory /usr/lib/mozilla/components
before running script: flashplayer-installer
[Potential Pitfall]: Using 64 bit Linux on a x86_64 architecture?
Four solutions:
- Adobe 64 bit Linux Flash plug-in: Homepage for the Adobe 64 bit Intel x86_64 Flash plug-in
- Flash Download home page:
download x86_64 Flash plug-in libflashplayer.so
- Download: wget http://download.macromedia.com/pub/labs/flashplayer10/flashplayer10_2_p3_64bit_linux_111710.tar.gz
- Untar the download: tar xzf flashplayer10_2_p3_64bit_linux_111710.tar.gz
- Put in plug-ins directory: cp libflashplayer.so /usr/lib64/mozilla/plugins/)
- Restart Firefox
Developer blog: Tinic Uro
OR
- Use the 32 bit plug-in wrapper for 64 bit browsers nspluginwrapper
This plug-in wrapper allows a 64 bit browser to load 32 binary plugins.
Ubuntu install: apt-get install nspluginwrapper
OR
- Install GNU Gnash
(Dependancies: OpenGL, SDL, GNOME libxml2)
OR
- Install GplFlash (older but less resource hungry than Gnash)
(Requires: MAD (MPEG Audio Decoder) Library "libmad":
http://sourceforge.net/projects/mad/)
Ubuntu/Debian: apt-get install libflash-mozplugin
Also see # x86_64 Browser Pitfalls and Fixes
Also see:
- Moolight: Microsoft Silverlight dynamic and video content support
Mono: Moonlight home page This installs from the browser. Visit the web site and select the install icon.
- Real Player 10:
Real Player - Select "Unix/Linux" link.
[Download]
and Helix Player project: http://player.helixcommunity.org
Download: RealPlayer10GOLD.rpm (Requires RPM/package compat-libstdc++)
http://www.real.com
- Exit Browser.
- Download RPM package: RealPlayer10GOLD.rpm or executable: RealPlayer10GOLD.bin
(or download Real player from Helix web site)
- Get rid of the old plugin if necessary:
- [prompt]# rpm -q RealPlayer
RealPlayer-8.0-1
- [prompt]# rpm -e RealPlayer-8.0-1
- Install rpm: rpm -ivh RealPlayer10GOLD.rpm
Installs to /usr/local/RealPlayer/.
The name of the package in the RPM database will be "RealPlayer".
(APT install: apt-get install realplayer)
- Post install script:
- [prompt]# cd /usr/local/RealPlayer/postinst/
- [prompt]# ./postinst.sh
Take defaults: system-wide symbolic links? Y, and prefix for symbolic links [/usr]
Note:
- The post install script will create soft links for the plug-ins into /usr/lib/netscape/plugins/, /usr/lib/mozilla/plugins/ and /usr/lib/firefox/plugins/.
- The package will also install the stand-alone executable /usr/local/RealPlayer/realplay.bin
(Must first set the environment variable HELIX_LIBS: export HELIX_LIBS=/usr/local/RealPlayer)
- Installs Application menu launchers under "Sound and Video".
- Configures GNOME mime types for desktop support.
- Defaults to using OSS sound driver (older). To specify ALSA sound driver
(Fedora Core and Linux kernel 2.6) edit file: ~/.realplayerrc
-
[helix]
SoundDriver=2
...
..
|
(This and many more files installed/configured.)
- Configure Mozilla manually as follows: ("Edit" + "Preferences" + "Navigator" + "Helper Applications")
| Mime Type |
Suffix |
Application |
| application/vnd.rn-realmedia |
rm |
/usr/local/RealPlayer/realplay.bin |
| application/smil |
smi |
/usr/local/RealPlayer/realplay.bin |
| audio/vnd.rn-realaudio |
ra,ram |
/usr/local/RealPlayer/realplay.bin |
| audio/x-pn-realaudio |
ra,ram |
/usr/local/RealPlayer/realplay.bin |
| video/vnd.rn-realvideo |
rv |
/usr/local/RealPlayer/realplay.bin |
| audio/x-pn-realaudio-plugin |
rpm |
Plug In: RealPlayer
(Plugin handles this one for you. No "Helper Application" to configure.) |
Test at:
Desktop Launcher:
- Name: RealPlayer
- Command: /usr/local/RealPlayer/realplay.bin
(Must first set the environment variable HELIX_LIBS: export HELIX_LIBS=/usr/local/RealPlayer)
- Icon: /usr/local/RealPlayer/share/icons/realplay_48x48.png
See the help files installed to file:///usr/local/RealPlayer/README
(These links only available if you have installed Real Player 10)
- Real Player 8: (legacy. See current Real Player 10 installation above.)
- Exit Browser.
- Rename the file substituting the "_" for "." in the file name.
mv rp8_linux20_libc6_i386_cs2_rpm rp8.linux20.libc6.i386.cs2.rpm
- Get rid of the old plugin if necessary: rpm -e RealPlayer-7.0-3
- Install rpm: rpm -ivh rp8.linux20.libc6.i386.cs2.rpm
Note:
- The rpm package will install the plug-ins into /usr/lib/netscape/plugins/ and /usr/local/netscape/plugins/.
- The package will also install the stand-alone executable /usr/bin/X11/realplay
- Move files from the Netscape plugins directory to the Mozilla plugins directory.
- cd /usr/lib/netscape/plugins/
- mv raclass.zip rpnp.so /usr/lib/mozilla/plugins/
Desktop Launcher:
- Name: RealPlayer
- Command: /usr/bin/X11/realplay
- Icon: /usr/lib/RealPlayer8/rp7.xpm
See the help files installed to file:///usr/lib/RealPlayer8/Help/realplay/introduction.htm
-[index]
(These links only available if you have installed Real Player 8)
[Potential Pitfall]: If installing the binary
instead of the RPM on a system with Native Posix Threads kernel
(NPTL first available in Red Hat
9.0) one may have to set the following environment variable before running
the downloaded script (rp8_linux20_libc6_i386_cs2.bin) and application:
LD_ASSUME_KERNEL=2.2.4
[Potential Pitfall]: Lock file may remain after a
crash and prevent startup. Kill hung processes if they exist: killall realplay then remove lock file before startup: ~/.RealNetworks_RealShared_00
- MPlayer all-in-one Mulimedia Video Player Plug-in:
Awesome software but may violate patents and intellectual property laws.
See: MPlayerHQ.hu.
Source and pre-compile binary RPM packages available. Plays Real media,
Microsoft Media Video (wmv), wav, SGI, mpeg2, H264, Indeo3, Sorenson3,
VP3, 3ivx, FFv1, ASV1, VCR1/2, QuickTime, DVB, Tivo, mov, avi, ...
Supports:
- codecs: ac3, asf, DivX, DivX4, DivX5, FLI/FLC, mp3, mpeg-1
(VCD), mpeg-2 (DVD), mpeg-4 (v1 and v2), VIVO, Quicktime mov: svq1 and
svq3 (Sorenson 1 and 3), Intel Indeo, Cinepak, Windows Media Video
(7,8) wmv (WMV1, WMV2, WMV3)
- video: aa, dga, ggi, gl, gl2, mga, pgm, sdl, x11, xmga, xvideo, xvidix (md5, png)
- audio: mp1, mp2, mp3, Windows Media Audio 7/8/9
(WMAv1/WMAv2/WMAv3), AC3, Ogg Vorbis, Real Audio: AC3 DNET, Cook,
Sipro, ATRAC3, Quicktime, VIVO, alaw, ulaw, various gsm, adpcm and pcm
See plugin support for MPlayer. http://mplayerplug-in.sourceforge.net/
Download source or pre-compiled binaries or RPM's:
Install:
- YUM: yum -y
--enablerepo=freshrpms install mplayer mplayerplug-in mplayer-gui
mplayer-skin-default mplayer-font-iso mplayer-codecs
mplayer-codecs-extra mplayer-vidix
- APT: apt-get install mplayer-386 mplayer-fonts mozilla-mplayer
- Pentium III: mplayer-586
- Pentium II/IV/MMX/M/D,AMD Athlon/Duron/Sempron: mplayer-386
- AMD 64: mplayer-amd64
- PowerPC: mplayer-powerpc
- Mac G4: mplayer-g4
For more MPlayer information / documentation see the YoLinux Video tutorial
- Codeweavers CrossOver Quicktime Plug-in:
 |
This plugin allows one to view Quicktime video including those encoded
with the Sorenson codec. It also handles other media types.
It is a commercial package which must be purchased ($24.95) before
downloading
(or shipped CD). The CrossOver package consists of Wine
and the Apple Quicktime viewer. It comes with an installer
and configurator which makes this a simple install.
Codeweavers Home Page - Select "Cross Over Plugin downloadable"
See List of supported Codeweaver plugins.
The MPlayer plugin above will now handle everything you need.
|
- XMMS: All-in-one audio player. (Managed by mozplugger or plugger.)
XMMS (X MultiMedia System) supports various audio formats
with the use of plugins. XMMS is included in the Red Hat and Fedora
Core distributions but support for MP3 is not included due to licensing
issues. MP3 support and other packages are available for download.
XMMS all-in-one audio player: XMMS Home Page
XMMS packages/RPMs:
- RPMs available with Fedora Core distribution (Fedora.Redhat.com): xmms, xmms-flac, xmms-skins
- RPM libraries and packages available with Fedora Core distribution (Fedora.Redhat.com): libogg, libvorbis
- Additional XMMS packages: xmms-alsa, xmms-esd, xmms-mikmod, xmms-vorbis, xmms-gl, xmms-status-plugin
- Additional support libraries and packages: libmikmod, gstreamer-plugins-extra-audio, libmad, libid3tag
For a huge list of XMMS plugins to display CD covers, lyrics, infrared device support, X-10 support, ... , see http://xmms.org.
XMMS Downloads:
- Fedora Core:
- RPM download required to play MP3s (RepoForge.org): xmms-mp3 (i386 and x86_64)
- XMMS Status: xmms-status (i386 and x86_64)
Add status xmms plugin support: right click on xmms window, select
"Options" + "Preferences" + "General Plugins" + "Status Docklet Plugin
1.0 [libstatusdocklet.so]". Then check "Enable Plugin" and "Apply".
- Use yum to download and install RPMs from freshRPMs.net and RepoForge.org:
(See YoLinux YUM configuration)
yum -y install xmms-mp3 gstreamer-plugins-extra-audio lame gsm faad2 libmad libid3tag
(libmad: MPEG audio decoding library)
Install:
- YUM: yum -y --enablerepo=dag install xmms xmms-skins xmms-flac xmms-mp3
kdeaddons-xmms xmms-status-plugin xmms-alsa xmms-esd xmms-mikmod
xmms-vorbis xmms-gl libogg libvorbis libmikmod libmad libid3tag
- APT: apt-get install xmms
Alternative MP3 audio plugins: (part of Fedora distribution.)
- mpg321: Package mpg321 Free drop-in replacement for mpg123.
- ogg123: Package vorbis-tools
- Audio players: (Part of base distribtution. Configured by default to run with mozplugger)
-
| Media Player |
Package name |
Formats |
Description |
| playmidi |
playmidi (RH 9.0) |
midi,mid |
MIDI audio player
(Uses MIDI devices ie FM/GUS/AWE 32.) |
| sox |
sox |
au,snd |
Basic audio file player |
| play |
sox |
au,snd
wav |
Basic audio file player |
| sidplay |
|
sid, psid |
SID Commodore 64 audio file player |
- Adobe SVG viewer plug-in: Crap!
Scalable Vector Graphics (SVG) viewer. Note that Firefox 1.5+ supports
native viewing of SVG.
It works, although I could not view Adobe's SVG examples.
All attempts to use the Adobe plug-in failed. Don't bother. Use Firefox
1.5 (or better) with it's native SVG support to view SVG files.
Mime types: (No configuration required by user)
Description: Scalable Vector Graphics
File extension: svg,svgz
Mime Type: image/svg+xml
File extension: svg
Mime Type: image/svg-xml
File extension: svg_adobe
Mime Type: image/vnd.adobe.svg+xml
|
Installation/Configuration:
- Download SVG plug-in.
- As root:
- cd /opt/
- tar xzf adobesvg-3.01x88-linux-i386.tar.gz
- chmod 755 adobesvg-3.01/
(Note: was alread set as default in tar bundle.)
- cd adobesvg-3.01/
- chmod 555 adobesvg-3.01/*.so
- cp libNPSVG3.so /usr/lib/mozilla/plugins
or
cp libNPSVG3.so /usr/lib/firefox/plugins
- Set the environment variable ADOBE_SVG_VIEWER_PATH to
/opt/adobesvg-3.01/
Add to $HOME/.bash_profile
export ADOBE_SVG_VIEWER_PATH=/opt/adobesvg-3.01
- Set (optional) the environment variable ADOBE_SVG_OPTIONS to
xshm=0,verbose=1,print-file=file-name where:
- xshm=0: disable shared memory (MIT-SHM) extension usage.
- verbose=1: extra diagnostics.
- print-file=file-name: Save print stream.
I did not set this environment variable and used default settings.
Test SVG plug-in with:
- Croczilla.com: examples - these work with Firefox 1.5+ native support!
- Adobe test page or with file SVGAbout.svg included with tar file. (does not work with plug-in or with Firefox 1.5+ native support.)
Navigation controls: (didn't work for me)
- Pan: ALT + mouse drag
- Pan horizontal/vertical only: Shift + ALT + mouse drag
- Zoom: ctrl + click and point mouse at point to zoom in.
- Zoom region: ctrl + click and drag mouse at rectangle to zoom in.
- Right click for pop-up menu.
[Potential Pitfall]: This plug-in never worked for me and gave me the following errors using their two examples:
-
XML Parsing Error: not well-formed
Location: http://www.adobe.com/svg/svgfiles/svgtest.svgz
Line Number 1, Column 1:
^
|
AND:
XML Parsing Error: prefix not bound to a namespace
Location: file:///opt/adobesvg-3.01/SVGAbout.svg
Line Number 292, Column 2:
|
What kind of crap Adobe plug-in and examples are these!!! I tried FC3
with firefox-0.10.1-1.0PR1.20 and firefox-1.0.7-1.1.fc3 and both browsers
crashed with the plug-in. Using Firefox version 1.5 downloaded from
Mozilla.com with native SVG support, the Adobe examples failed but the
Croczilla.com examples worked.
What works: Firefox 1.5+ native support or helper application "Eye of Gnome" eog.
- Tcl/Tk plugin:
Allows execution of Tcl/Tk script in browser window.
Download: Tcl Developer Xchange (lots of security implications)
http://www.tcl.tk/software/plugin/
Installation:
zip -dc tclplug20-x86-linux.tar.gz
tar xf tclplug20-x86-linux.tar
cd tclplug20-x86-linux
./install.sh
Additional info note: This plugin should only be used with trusted sites or
intranets. It allows the script to be downloaded from a website and
executed in the browser locally. It allows the full power of Tcl/Tk.
a "Safe-Tcl" Tcl interpreter is available which only executes a subset of
Tcl is available from this web site.
- VRML Plugins:
3D Virtual Reality Modeling Language (VRML) geometry model viewers.
Helper programs:
VRML Links:
3-D Mime Types:
- VRML: model/x3d+vrml
Extension: wrl (compressed: wrl.gz)
- X3D: model/x3d+xml
- X3Db: model/x3d+binary
X3D: (VRML next gen in compressed XML)
- DjVu Web Browser Plug-in:
Scan-toWeb solution for digital documents:
Developed at AT&T Labs for viewing compressed high resolution images.
Talk about esoteric. Just added this to make the list complete.
Caminova.net download
DjVu.org
- nDVI - a LateX DVI viewer plugin for Mozilla
Download: Evince home page - regular Gnome app distributed with most Linux systems
- Math and Math Symbols:
- MathZilla plug-in: Firefox 1.5+ includes native MathML support.
View Math symbols represented in XML in your browser.
- jsMath: All you need are the right fonts. Javascript does the rest.
- Live Math: (proprietary)
This commercial cross platform plug-in supports their LiveMath product for
the creation of equation symbols and graphics.
Plugin Links:
| Configuring Mozilla/SeaMonkey Helper Applications: |
The configuration described below and the script shown,
applies to the Mozilla/SeaMonkey browser only.
The Firefox browser does not accept user defined applications for mime type handling.
Firefox only accepts plug-ins and thus any additional support must be
configured through the "MozPlugger" plug-in.
Links to file types not handled by the Mozilla/SeaMonkey browser or e-mail attachments
not handled by the Mozilla/SeaMonkey e-mail client are opened by helper applications.
The file mime type and/or file extension identifies the file type.
This section of the tutorial shows how to configure the Mozilla/SeaMonkey web
browser to support additional file types.
This is different than using a plug-in which allows for the file to be viewed
within the browser. Helper applications are launched as separate applications.
The following configuration instructions for allowing Mozilla
to handle various media formats ultimately results in the modification
of the files $HOME/.mailcap, $HOME/.mime.types and $HOME/.mozilla/user-id/xxxxxx.slt/mimeTypes.rdf.
-
Mozilla/SeaMonkey: Edit + Preferences + choose: Navigator + Helper Applications:
Downloads: The easiest way to download the appropriate
components is with the YUM, the "Yellow Dog" network RPM package
installer. See YoLinux tutorial on YUM configuration
and how to add the FreshRPM.net site to your download list which will
allow you to have access to the media player applications which are not
included in the base install.
Mime Types and Applications:
- application/octet-stream: This mime type is very vague but used all
the time especially by Microsoft e-mail clients like Outlook.
There is no single application to handle the multitude of file
types which are sent with this mime type. Only the file extention or actual
file interrogation of its magic number (file command) can reveal the contents.
The following script and program attempt to launch the appropriate application
for this mime type.
-
Description: Octet-Stream Handler
File extension: url, doc, dot, rtf, xls, xlt, xlm, xld, xla, xlc, xlw, xll,
ppt, pot, ppa, pps, pwz, pdf, ai, eps, ps, bmp, png, xpm,
pgm, ico, jpg, jpeg, jpe, gif, tiff, tif, xwd, svg, svgz, rm, smi, ra,
ram, rv, mpg, mpeg, mpe, mp2, wmv, asf, asx, wma, wax, wmv,
wmx, mov, vcf, txt, cpp, cc, h, hh, idl, c, C, java
MIME Type: application/octet-stream
Application: /opt/bin/mozilla-octet-stream.sh
|
Now why would an mpeg movie or a jpeg image ever be sent as an octet-stream? Either its
a Microsoft product which sent it or a misconfigured server is unaware of the
mime type or "dumbed down" to avoid having users use this media type.
This solution uses a shell script /opt/bin/mozilla-octet-stream.sh and executable /opt/bin/suffix compiled from the source below.
File: /opt/bin/mozilla-octet-stream.sh
-
#!/bin/sh
# Description: This handles mime type application/octet-stream for Mozilla.
# This shell script uses the file extention to determine
# which application to use as the mime type is vague
# License: BSD
# Author: Greg Ippolito
FILE_EXTENTION=`/opt/bin/suffix "$1" | tr '[:upper:]' '[:lower:]'`
case "$FILE_EXTENTION" in
url)
# Microsoft Outlook can generate a "url" attachement.
# See http://www.mozilla.org/unix/remote.html
# Executable path is dependant on distribution. This is for Red Hat 8.0
# Use the command "ps -auwx" to find the actual process name.
/usr/lib/mozilla-1.0.1/mozilla-bin -remote "openURL(`awk -F\"=\" '/^URL/ { print $2 }' \"$1\" `)"
break
;;
doc | dot | rtf)
/usr/bin/oowriter "$1" &
break
;;
xls | xlt | xlm | xld | xla | xlc | xlw | xll)
/usr/bin/oocalc "$1" &
break
;;
ppt | pot | ppa | pps | pwz)
/usr/bin/ooimpress "$1" &
break
;;
pdf)
/usr/bin/xpdf "$1" & # or /usr/bin/evince (RHEL5) or /opt/Acrobat5/bin/acroread if installed
break
;;
ai | eps | ps)
/usr/X11R6/bin/ggv "$1" &
break
;;
bmp | png | xpm | pgm | ico | jpg | jpeg | jpe | gif | tiff | tif | svg | svgz)
/usr/bin/eog "$1" &
break
;;
xwd)
xwud -in "$1" &
break
;;
rm | smi | ra | ram | rv)
/usr/X11R6/bin/realplay "$1" &
break
;;
mpg | mpeg | mpe | mp2)
/usr/bin/xine -p "$1" &
break
;;
wmv | asf | wma | wax | wmx | mov)
/usr/bin/mplayer "$1" &
break
;;
vcf)
/usr/bin/gedit "$1" &
break
;;
txt | cpp | cc | h | hh | idl | c | C | java)
/usr/bin/gedit "$1" &
break
;;
*)
gvim "$1" &
;;
esac;
|
One may also use the Bash shell funtion:
-
You may replace the line in script above:
FILE_EXTENTION=`/opt/bin/suffix "$1" | tr '[:upper:]' '[:lower:]'`
|
with the following code segment:
function getfileext () {
file=$1
echo ${file##*.}
}
FILE_EXTENTION=`getfileext $1`
|
This may be used instead of the following program "suffix" below except that this
shell function will not work on file names with embedded blanks.
Using the program suffix is superior than using the bash function
getfileext ().
File: suffix.c
Source code to /opt/bin/suffix
-
/* File: suffix.c
Description: This command line program returns the suffix of a file name
as defined by the characters following the last "." in the
file name.
License: BSD
Author: Greg Ippolito
*/
#include <stdio.h>
#include <stdlib.h> /* for exit */
#include <string.h>
#include <stdlib.h>
int main(int argc, char *argv[])
{
size_t i, ilen;
int isuffix_len;
int j=0;
int k=0;
char *suffix;
if(argc < 1) return -1;
ilen = strlen((const char *)argv[1]);
for(i=ilen; i!=0; i--)
{
if((int)argv[1][i] == '.') // Pointer math.
{
isuffix_len = ilen - i;
for(j=i+1; j<=ilen; j++)
{
putchar(argv[1][j]);
}
putchar('\n');
break;
}
}
return 0;
}
|
Compile: gcc -o /opt/bin/suffix suffix.c
Both the shell script and program must have execute privileges:
-
chmod ugo+x /opt/bin/mozilla-octet-stream.sh /opt/bin/suffix
- application/ms-tnef: Transport Neutral Encapsulation Format
This format is used by Microsoft Outlook for attachments.
Use TNEF, a program for unpacking MIME attachments of type
"application/ms-tnef".
Mozilla/SeaMonkey Configuration:
Description: Microsoft
File extension:
MIME Type: application/ms-tnef
Application: /opt/bin/tnef-mozilla.sh
|
Use application TNEF to list and unpack contents of tenf attachments:
Application TNEF Installation:
-
tar xzf tnef-1.2.1.tar.gz
cd tnef-1.2.1
./configure --prefix=/opt
make
make install
Using interactive command tnef:
- List encapsulated files: /opt/bin/tnef --list file-type-tnef
- Extract contents: tnef -f file-type-tnef
- Help: tnef -h
File: /opt/bin/tnef-mozilla.sh
-
#!/bin/sh
/usr/X11R6/bin/xterm -bg black -fg green -s -hold -title "List of encapsulated files in email attachment:" \
-e /opt/bin/tnef --list "$1"
|
Links:
- Microsoft doc: (See review of Office Suites for a full review of MS/Word import compatability)
Description: Microsoft Word Document
File extension: doc,dot
MIME Type: application/msword
Application: /usr/bin/oowriter
|
and
Description: Machintosh Word File
File extension: doc,dot
MIME Type: application/appfile
Application: /usr/bin/oowriter
|
and
Description: Rich Text Format
File extension: rtf
MIME Type: application/rtf
Application: /usr/bin/oowriter
|
Also see: Using Abiword to view Word documents
- Document MS/Excel:
Description: Microsoft Excel Worksheet
File extension: xls,xlt,xlm,xld,xla,xlc,xlw,xll
MIME Type: application/vnd.ms-excel
Application: /usr/bin/oocalc
|
gnumeric Home Page (Rpm is part of the base Red Hat Linux CD installation
http://mirrors.usc.edu/pub/linux/distributions/redhat/redhat/linux/9/en/os/i386/RedHat/RPMS/gnumeric-X.XX-X.i386.rpm
- Microsoft PowerPoint Document:
Description: Microsoft PowerPointShow
File extension: ppt,pot,ppa,pps,pwz
MIME Type: application/vnd.ms-powerpoint
Application: /usr/bin/ooimpress
|
- Document Adobe/pdf: Acroread
Description: Adobe pdf
File extension: pdf
MIME Type: application/pdf
Application: /usr/local/Acrobat7.0/bin/acroread
|
Download Acroread application - [all languages/platforms/rpm/tar.gz] - [AdobeReader_enu-7.0.0-2.i386.rpm]
Install:
- rpm -ivh AdobeReader_enu-7.0.0-2.i386.rpm
- apt-get install acroread mozilla-acroread
- Download: AdobeReader_enu-7.0.9-1.i386.tar.gz
- tar xzf AdobeReader_enu-7.0.9-1.i386.tar.gz
- cd AdobeReader
- ./INSTALL
- Install to: /opt/Adobe/Acrobat7.0
- Install browser plug-in to: /usr/lib/mozilla
(or create link: ln -s /opt/Adobe/Acrobat7.0/Browser/intellinux/nppdf.so /usr/lib/mozilla/plugins)
Notes for Acrobat Reader 5.0: (legacy)
- The Acroread PDF viewer includes a Netscape plug-in nppdf.so but I never got it to work. The Adobe acroread application as configured above works like a champ.
- [Potential Pitfall]:
Acroread 5.0 - The default Red Hat 8.0/9.0 UTF-8 language environment
variable is incompatable with Adobe Acroread. One must set "LANG" to
something else. i.e.: export LANG=C
It can be set in your login profile or near the beginning of the shell script /opt/Acrobat5/bin/acroread
- Red Hat (8,9,E3,E4) comes with the plug-in "plugger" which will launch the xpdf
viewer which seems to be just as capable as Adobe Acroread. Acroread has more
printing features.
Evince (/usr/bin/evince) was introduced with Red Hat Enterprise 5.
Download Acroread desktop icon to use with this application.
- Image X11/xwd:
Description: X Window Dump Image
File exxtension: xwd
MIME Type: image/x-xwindowdump
Application: /usr/X11R6/bin/xwud -in
|
xwud is part of Red Hat Linux installation
(May be located in /usr/bin/xwud in newer distributions.)
- Images pcx/bmp:
Description: PCX Image
File exxtension: pcx
MIME Type: application/pcx
Application: /usr/X11R6/bin/xv
Description: Windows Bitmap
File extension: bmp
MIME Type: image/x-MS-bmp
Application: /usr/X11R6/bin/xv
|
Red Hat 8.0 systems introduced /usr/bin/eog. Later releases include gthumb.
xv Home Page (Rpm is part of Red Hat Linux Powertools CD (RH 7.0. Not found in 7.1???)
http://www.ibiblio.org/pub/Linux/distributions/redhat/7.0/en/powertools/i386/RedHat/RPMS/xv-3.10a-23.i386.rpm
and xv-docs-3.10a-23.i386.rpm
- Virtual Bussiness Card - VCard:
Description: Virtual Bussiness Card
File extension: vcf
MIME Type: image/x-vcard
Application: /usr/bin/gedit
|
Current Red Hat 8.0 systems use /usr/bin/eog
- Image multipage fax - tiff:
Description: KFax Viewer
File extension: tif,tiff
MIME Type: image/x-tiff
Application: /usr/bin/kfax
|
kfax is part of Red Hat Linux installation
Note: Note kfax is part of RPM: kdegraphics.
kdegraphics-2.1.1-1.i386.rpm
This application works well for multi-image tiff fax files sent by JFax
and other fax-mail services.
- MPlayer all-in-one Mulimedia Video Player:
Awesome software but may violate patents and intellectual property laws.
See: MPlayerHQ.hu.
Source and pre-compile binary RPM packages available. Plays Real media,
Microsoft Media Video (wmv), wav, SGI, mpeg2, H264, Indeo3, Sorenson3,
VP3, 3ivx, FFv1, ASV1, VCR1/2, QuickTime, DVB, Tivo, mov, avi, ...
Description: MS ASF video
File extension: asf,asx,wma,wax,wmv,wmx
MIME Type: video/x-ms-asf
Application: /opt/bin/mplayer-run
Description: Windows Media Video
File extension: wmv
MIME Type: video/x-ms-wmv
Application: /opt/bin/mplayer-run
Description: Windows Media
File extension: wmv,asf,mov
MIME Type: application/x-mplayer2
Application: /opt/bin/mplayer-run
|
Shell script to launch MPlayer: /opt/bin/mplayer-run
-
#!/bin/bash
/usr/bin/mplayer -playlist "$*"
|
Other methods of launching MPlayer:
- xterm -e /usr/bin/mplayer '%s'
See # MPlayer download and install instructions above.
- Audio mp3: XMMS (Default Fedora Core uses mozplugger plug-in configuration. See above.)
See XMMS installation above. XMMS supports: mp3, m3u, wav, ogg, ...
Description: MPEG audio
File extension: mp3
MIME Type: audio/mp3
Application: /usr/bin/xmms
Description: MPEG audio
File extension: mpa,abs,mpega
MIME Type: audio/mpeg
Application: /usr/bin/xmms
Description: MPEG audio
File extension: mpa,abs,mpega
MIME Type: audio/x-mpeg
Application: /usr/bin/xmms
Description: MPEG audio stream, music resource locator
File extension: mp3, m3u
MIME Type: audio/x-mpeg-url
Application: /usr/bin/xmms
Description: MPEG audio stream, music resource locator
File extension: mp3, m3u
MIME Type: audio/mpeg-url
Application: /usr/bin/xmms
Description: Shoutcast Playlists
File extension: pls
MIME Type: audio/x-scpls
Application: /usr/bin/xmms
Description: OGG audio
File extension: ogg
MIME Type: audio/x-ogg
Application: /usr/bin/xmms
Description: OGG audio
File extension: ogg
MIME Type: application/ogg
Application: /usr/bin/xmms
Description: OGG audio
File extension: ogg
MIME Type: application/x-ogg
Application: /usr/bin/xmms
Description: Microsoft wave file
File extension: wav
MIME Type: audio/wav
Application: /usr/bin/xmms
Description: Microsoft wave file
File extension: wav
MIME Type: audio/x-wav
Application: /usr/bin/xmms
Description: Microsoft wave file
File extension: wav
MIME Type: audio/x-pn-wav
Application: /usr/bin/xmms
Description: Microsoft wave file
File extension: wav
MIME Type: audio/x-pn-windows-acm
Application: /usr/bin/xmms
|
Alternative audio players:
Directories of MP3 streaming stations. (Pick one and listen)
- Music SID: (use plug-in.)
Description: SID Commodore 64 Audio player
File extension: sid,psid
MIME Type: audio/prs.sid
Application: Use plug-in to launch sidplay
|
See:
- Google Earth KML:
Download Linux client
Description: KML Google Earth
File extension: kml
MIME Type: application/vnd.google-earth.kml+xml
Application: /opt/google-earth/googleearth
|
If using a proxy (example setting): export http_proxy=http://proxy.megacorp.com:80
- Bittorrent: (Distributed download client. Manages ".torrent" files)
Download Linux client (source, YUM, RPM or .deb) Available for Python 2.3 and 2.4.
Install:
- yum install BitTorrent
or
- Download: BitTorrent-4.20.7-1-Python2.3.noarch.rpm
Description: BitTorrent
File extension: torrent
MIME Type: application/x-bittorrent
Application: /usr/bin/bittorrent
|

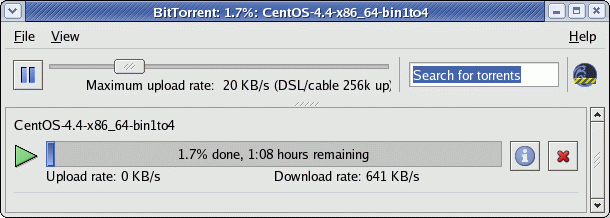

BitTorrent download panel:
Install RPM prerequesites: (YUM install did not seem to require them but RPM did)
- python(abi)
- python-crypto
- python-twisted
- wxPython (Also installs wxGTK2)
- python-psyco
- python-zopeinterface
| Gnome Nautilus and Mime Types: |
-
Applies to RH 8/9. Newer Fedora systems are migrating to Gnome VFS.

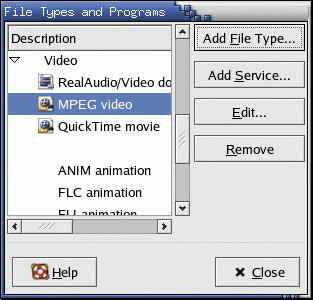

The Gnome Nautilus Mime Type configuration tool will also define mime types
for Mozilla/SeaMonkey. The configuration tool /usr/bin/gnome-file-types-properties
will edit the following user configuration files:
- $HOME/.gnome/mime-info/user.keys: List mime types and the associated application/viewer.
- $HOME/.gnome/mime-info/user.mime: Mime types and the associted file extention
System values:
- /usr/share/mime-info/gnome.mime
Links:
Keyboard shortcuts:
-
| Go / Navigation |
|
| Back |
Alt-LeftArrow |
| Forward |
Alt-RightArrow |
| Stop |
ESC |
| File Menu |
|
| New Navigator Window |
Cntl-n
Cntl-1 |
| New Msg E-mail Window |
Cntl-m
Cntl-2 |
| New Composer Window |
Cntl-Shift-n
Cntl-3 |
New Radio Window
(Real Audio) |
Cntl-7 |
| Open Page Dialog Box |
Cntl-o |
| Save As... |
Cntl-s |
| Print... |
Cntl-p |
| Close Window |
Cntl-w |
| Exit Mozilla |
Cntl-q |
| Edit Menu |
|
| Find in Page... |
Cntl-f |
| View Menu |
|
| Refresh Page |
Cntl-r |
| View Page Source |
Cntl-u |
| Tools Menu |
|
| Show History |
Cntl-h |
| Display bookmarks panel |
Cntl-b |
| Dynamic Zoom (scale text) |
|
| Zoom In |
Cntl + |
| Zoom out |
Cntl - |
Registering your default browser:
Set in config file: ~/.htmlviewrc
-
X11BROWSER=/usr/bin/browser-executable-to-be-used-as-default
|
About URLs:
- about:config
- about:plugins
- about:
FTP Uploads:
Use the following syntax: ftp://login:password@ftp-site.com
- Select "File" + "Upload File..."
OR
- Open two Mozilla windows, one showing the destination FTP directory
and the other showing the local directory. Now drag and drop.
Locked out after a crash?:
[Pitfall]:
If you experienced a system crash and subsequently rebooted and tried to start
Mozilla but are prevented from using your user profile, you may have to
remove the "lock" file.
The lock file prevents more than one instance of Mozilla from running on a
single profile. It is a symbolic link which will have to be removed before
starting Mozilla. Remove it: rm $HOME/.mozilla/userid/dji9dszq.slt/lock where the funky "slt" directory name will be unique to your user id.
Newer versions of Firefox will also have an additional lock file: ~/.mozilla/firefox/9f2f04yd.default/.parentlock
-
Adding a BBC News Feed:
Method 1 - Add RSS feed to Bookmarks: (Not the best way. See method 2)
- Right-click on the "Bookmark" toolbar
- Select "New Bookmark"
- Name: Latest Headlines
- Location: http://fxfeeds.mozilla.org/rss20.xml

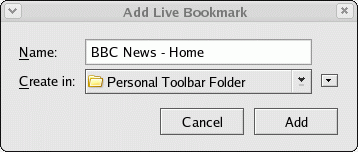

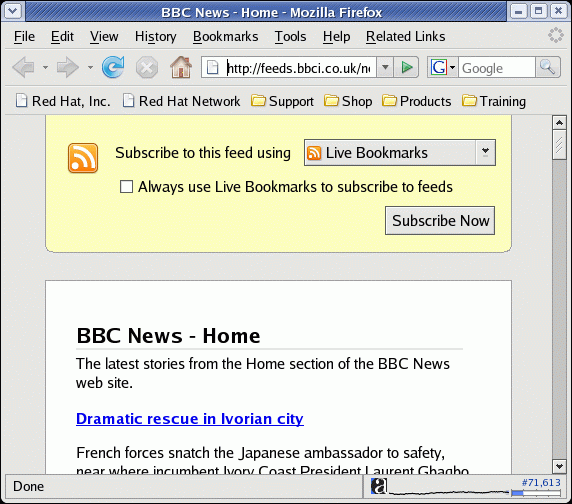

Method 2 - Add BBC Live Bookmark: (best method)

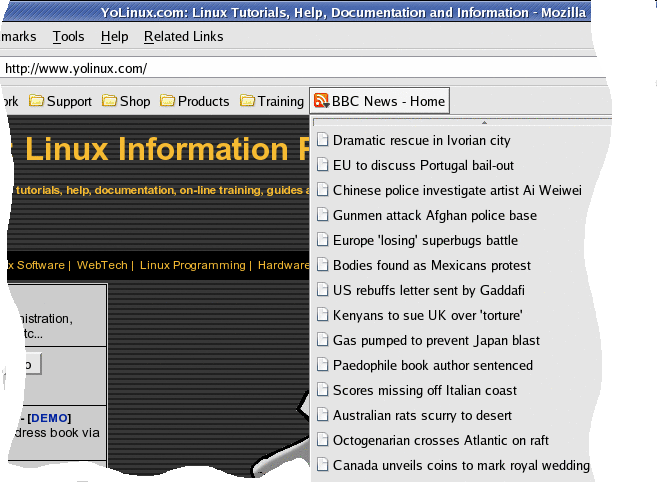

A new bookmark button will be generated on the Bookmarks toolbar.
A push feed of headline news is updated in the pulldown menu.
To remove, right click on the bookmark and select "Delete".
| Using ssh tunneling and a Remote Proxy: |
You can create an ssh tunnel to a remote system and use the remote system
as a proxy.
Local system: Connect to remote system using ssh and dynamic port forwarding.
-
ssh -D port-number login-id@remote-node
Example:
-
ssh -D 9999 user1@node6.mega-corp.com
This establishes a connection to the remote node and configures traffic on
local port 9999 to be forwarded to the remote system which acts as a proxy
and fulfill the network request.
Mozilla/SeaMonkey Configuration:
- Select "Edit" + "Preferences..."
- On the left hand side of the window select and expand on the browser tree
"Advanced" + "Proxies"
- Select "Manual Proxy Configuration"
- Select "SOCKS V4"
- Set entries:
- Socks Host: localhost
- Port: 9999
Remote system: The service sshd must be running.
Browser requests will be forwarded to local port 9999 through
ssh to the remote node which will fulfill the request. I have tried
this for http web request as well as e-mail POP3 inbound mail and SMTP
outbound mail and it works!
| x86_64 Browser Pitfalls and Fixes: |
The Mozilla/SeaMonkey and Firefox browsers compiled for the x86_64,
64 bit architecture
(AMD Athelon/Opteron/Turion 64 and Intel EM64T) do NOT
support proprietary plug-ins compiled for the i386, 32 bit processor architecture.
This is a problem if you want to use Macromedia Flash plug-ins which are compiled for 32 bit architectures.
The solution is to use the 32 bit
i386 browser binaries (and their dependencies) on the x86_64 version of Linux.
This works because x86_64 Linux (i.e. AMD Athelon)
supports the option to run both 32 bit i386 and 64 bit x86_64 binaries by supplying 32 bit libraries on the 64 bit OS. This is true for both RedHat and Debian/Ubuntu distributions.
RPM based OS Fix: (FC-3 example)
- Remove x86_64 RPMS:
- rpm -e firefox mozplugger
- Install i386 RPMS:
- rpm -ivh firefox-0.10.1-1.0PR1.20.i386.rpm mozplugger-1.6.2-1.i386.rpm
You can also specify the architecture when using YUM for installation: yum -y install firefox.i386
Ubuntu/Debian based OS Fix:
- Remove x86_64 packages:
- dpkg -r firefox mozplugger
- Install i386 packages:
- dpkg -i --force-architecture firefox-3.0......deb
Generic Linux/Unix based Fix:
Download tar file from http://mozilla.com and install to /opt:
- mv firefox-3.0.5.tar.bz2 /opt
- cd /opt
- tar xjf firefox-3.0.5.tar.bz2
If you insist on using x86_64 browser binaries, make sure you:
-
Install Microsoft True Type fonts to correctly render pages targeted for the Microsoft browser and fonts.
See YoLinux tutorial on installing fonts and Microsoft True Type Fonts
Install:
 Books: |
-
|
