Yolinux.com Tutorial

Linux Git and Trac Server Integration

Git is a is a Change Management (CM) system for software source code configuration control. It can also be applied to any other types of files. Git is much more complex than Subversion. If this level of complexity is not required use Subversion. See the YoLinux.com Subversion and Trac tutorial

Trac is a software bug and enhancement tracking system. One first defines a development roadmap of milestones and then tickets are issued for bugs or new enhancements pertaining to mile-stones in the "roadmap". Bugs and enhancements are then assigned to developers. Trac also includes a Wiki to support collaborative development.

Tutorial Table of Contents:



Free Information Technology Magazines and Document Downloads
TradePub link image

Git Installation and Initialization:

Git logo

Installation:
  • Red Hat Enterprise/CentOS: included with Workstation and Server installation DVD. RPM package "git".
    For the current version of Git see RHEL 6 x86_64 or RHEL 7 x86_64 RPMs (yum install git2u-all)
  • Ubuntu/Debian: sudo apt-get install git
    Installs packages: git-doc git-el git-arch git-cvs git-svn git-email git-daemon-run git-gui gitk gitweb
Git can be installed for access via ssh or by http. Ssh requires a system account and gives users complete unrestricted access to the repository while http access can give complete access or limited read only access. Http access is more popular with open source community projects and is firewall friendly due to the use of port 80.

Git SSH access:

For information on user accounts, see creating a new user system login.

Create Git repository:
  • mkdir /srv/git/projectx
  • cd /srv/git/projectx
  • git config --global user.name "John Doe"
  • git config --global user.email john.doe@megacorp.com
  • git --bare init --shared=group
  • export GIT_PROJECT_ROOT=/srv/git/projectx/.git
  • cd $HOME/src/projectx
  • git add *
  • git commit -m "initial import"
Interface with Git repository:
  • Use ssh-keygen to set up account keys
  • git clone ssh://user@hostname:/srv/git/projectx/.git

Git HTTP access:

User Git version 1.6.6 or later to be able to configure a "smart" http Git server. This configuration uses http or https protocol with a Git CGI web back-end program to support client access to the Git repository.

Create Git repository:
  • mkdir /srv/git/projectx
  • cd /srv/git/projectx
  • git config --global user.name "John Doe"
  • git config --global user.email john.doe@megacorp.com
  • git --bare init --shared=group
  • export GIT_PROJECT_ROOT=/srv/git/projectx/.git
  • cd $HOME/src/projectx
  • git add *
  • git commit -m "initial import"
  • chown -R apache.apache /srv/git/projectx

Configure the CGI:

File: /etc/httpd/git.conf
SetEnv GIT_PROJECT_ROOT /srv/git/projectx                  # Location of Git repository
SetEnv GIT_HTTP_EXPORT_ALL                                 # Export all Git repositories found
SetEnv GIT_HTTP_MAX_REQUEST_BUFFER 1000M
SetEnv REMOTE_USER=$REDIRECT_REMOTE_USER                   # Tells the backend when a user is authenticated
ScriptAlias /git/ /usr/libexec/git-core/git-http-backend/  # URL requests to http://www.domain.com/git/ execute CGI

# Allow for CGI execution from the specified directory
<Directory "/usr/libexec/git-core">
  AllowOverride None
  Options +ExecCGI -Includes
  Order allow,deny
  Allow from all
</Directory>

# Anonymous read, authenticated write (requires mod_rewrite)
RewriteCond %{QUERY_STRING} service=git-receive-pack
RewriteRule ^/git/ - [E=AUTHREQUIRED:yes]
<LocationMatch "^/git/">
   Order Deny,Allow
   Deny from env=AUTHREQUIRED

   AuthType Basic
   AuthName "Git Access"
   Require group committers
   Satisfy Any
   AuthUserFile /srv/git/htpasswd
   Require valid-user
</LocationMatch>

# Use this to support multiple repositories from different gitnamespaces in a single repository:
SetEnvIf Request_URI "^/git/([^/]*)" GIT_NAMESPACE=$1
ScriptAliasMatch ^/git/[^/]*(.*) /usr/libexec/git-core/git-http-backend/storage.git$1
Anonymous read access and authenticated write access.

Man pages:

Git Configuration:

Git client proxy configuration:
  • git --global http.proxy http://proxy.megacorp.com:80
    or
  • export HTTP_PROXY=proxy.megacorp.com:80
Test: config --get http.proxy

Configure repository:
  • Make everything group readable and writable: git config core.sharedrepository 1
  • Make sure that merges can't happen when you push to the repo. You have to do the merges on your local machine, and then push the result:
    git config receive.denyNonFastforwards true
Git client: gitk
  • Red Hat: Note that Red Hat does not have a package for Gitk. The latest version is available from github.com: gitk
    wget https://raw.github.com/gitster/git/master/gitk-git/gitk
    chmod +x gitk
    This application requires Tcl/tk.
  • Mint/Ubuntu/Debian: apt-get install gitk
    May also install dependency tk

Git-web Installation:

Git-web is a Perl cgi web front-end to Git which allows one to view the Git repository.

Git-web Installation:

  • Red Hat/CentOS: The RPM package gitweb-caching is available from the Extra Packages for Enterprise Linux (EPEL) website and YUM repository
    rpm -ivh gitweb-caching-1.6.5.2-8.b1ab8b5.el6.noarch.rpm
    Installs to /var/www/gitweb-caching/...
  • Mint/Ubuntu/Debian: apt-get gitweb
    CGI installs to /usr/lib/cgi-bin/gitweb.cgi

Configuration:

Configure git-web by creating the file /etc/gitweb.conf and place all changes to the configuration here. Do not edit the installation configuration.

File: /etc/gitweb.conf
$projectroot = "/srv/git/projectx/git";
$site_name = "cm2.megacorp.com";
#$home_link_str = "http://cm2.megacorp.com/git-caching/"
$home_link_str = "GIT-Web";
# This just makes the description field wider so you can read # it better
$projects_list_description_width = 100;
# enable blame
$feature{'blame'}{'default'} = [1];
$feature{'patches'}{'default'} = [512];
If this is your command: git ls-remote userx@cm2.megacorp.com:/srv/git/projectx/git/master note that the "project root" is one directory higher.

Apache web server configuration file:
  • Red Hat: /etc/httpd/conf.d/gitweb-caching.conf
  • Mint/Ubuntu/Debian: /etc/apache2/conf.d/gitweb

Add the necessary authentication and authorization. See the YoLinux Apache authentication and authorization tutorial

[Potential Pitfall]: If you get the error in your Apache logs:

"... File does not exist: /var/www/gitweb-caching/gitweb.js, referer:. ..."

Download the file from the Git repo: git-1.7.6.1/gitweb/static/gitweb.js

Gitweb Configuration For Multiple Git Repositories:

File: /etc/gitweb.conf
$projectroot = "/srv/git";

...
...

Note:
  • The project root is just defined at a higher point in the directory tree. This will cover the repositories held in /srv/git/projectx/git and /srv/git/projecty/.git (for example).
  • Use symbolic links to place all repositories under the same heirarchy if the repositories are scattered throughout the file system.

Trac and the Git plugin:
Trac logo

Trac Installation:

  • Red Hat EPEL RPM downloads: https://fedoraproject.org/wiki/EPEL
    Download the following RPM packages:
    • trac
      Requires: python-genshi06
    • trac-git-plugin
    Note: many of these RPM packages are listed as "x86_64" 64 bit packages but still have 32 bit "i686" dependencies. The "i686" RPM dependencies are available on the RHEL installation DVD.

    RPM package trac installs to:

    /usr/bin/trac-admin
    /usr/sbin/tracd
    /var/www/cgi-bin/trac.cgi
    /var/www/cgi-bin/trac.fcgi
    /etc/trac/...
    /usr/lib/python2.6/site-packages/Trac-0.12.2-py2.6.egg-info/...
    /usr/lib/python2.6/site-packages/trac/...
    /usr/lib/python2.6/site-packages/tracopt/...
    /usr/share/doc/trac-0.12.2/...


  • Mint/Ubuntu/Debian:
    • apt-get install trac
      This will also install the packages: libsvn1 python-genshi python-pygments python-setuptools python-subversion python-tz subversion
    • apt-get install trac-git

Trac Configuration:
  • Location of Trac configuration: mkdir /srv/trac
  • Initialize the Trac configuration: trac-admin /srv/trac/projectx initenv
    Project Name [My Project]> projectx
    Database connection string [sqlite:db/trac.db]>

  • Give yourself admin privileges: trac-admin /srv/trac/midas/ permission add userx TRAC_ADMIN
  • Allow the web server to own and access Trac: chown -R apache:apache /srv/trac
  • SELinux:
    • chcon -R -t httpd_sys_content_t /usr/share/trac/
    • chcon -R -t httpd_sys_content_t /srv/trac/

Trac-git integration: also see the GitPlugin wiki page
  • mkdir /srv/trac

Trac configuration file: /srv/trac/projectx/conf/trac.ini
[trac]
...
## Best to use Trac with a "bare" and up to date repo.
repository_dir = /srv/git/projectx/git/master
## repository_sync_per_request = (default)
repository_type = git

...

[git]
cached_repository = true
persistent_cache = true
git_bin = /usr/bin/git
split_page_names = false
## length revision sha-sums should be tried to be abbreviated to (must be >= 4 and <= 40); default: 7
shortrev_len = 40
## (0.12.0.3+) minimum length for which hex-strings will be interpreted as commit ids in wiki context
wiki_shortrev_len = 40

[header_logo]
alt = Megacorp ProjectX
height = -1
link = /
src = /images/ProjectX_logo.png
width = -1

[attachment]
max_size = 8388608
render_unsafe_content = false

# place at end of file
[components]
tracext.git.* = enabled
Note:
  • Change default for logo and attachement max_size (I use 8388608)
  • Use 40 char Git object IDs. The reason for this is because the Trac ticket reference to a commit must use all 40 characters in order to generate a proper hyperlink to the checked-in code.
    Thus specify: shortrev_len = 40
    Example:
    [d64582ec9bf6e1bee0ee2e7084739be9c552614f]
    or
    rd64582ec9bf6e1bee0ee2e7084739be9c552614f (prefixed with "r")

    This "wiki format" will generate hyperlinks to the Git commit info. Partial Git object IDs will not work.

Trac Configuration For Multiple Git Repositories:

This capability is only available in Trac 0.12 and later.

Trac configuration file: /srv/trac/projectx/conf/trac.ini
[trac]
repository_sync_per_request =
...


[repositories]
projectx.description=Project X
projectx.dir = /srv/git/projectx/git/master
projectx.type = git
projectx.url = ssh://localhost/srv/git/projectx/git/master
projecty.description=Project Y
projecty.dir = /srv/git/projecty/.git
projecty.type = git
projecty.url = ssh://localhost/srv/git/projecty/.git


[git]
cached_repository = false

...

Note:
  • Use 40 char Git object IDs and the repository identifier assigned when referencing the Git check-in hash code. The repository identifier is required to distinguish which repository to use.
    Example:
    [d64582ec9bf6e1bee0ee2e7084739be9c552614f/projectx]
    or
    [changeset:d64582ec9bf6e1bee0ee2e7084739be9c552614f/projectx]

    This "wiki format" will generate hyperlinks to the Git commit info. Partial Git object IDs will not work. The "r" prefix also does not seem to work as it does with a single repository.

  • Set cached_repository = false for a repository with more than 500 commits. Caching seems to bog things down as a repo grows.
  • A default code tree can be displayed by adding:
    .alias = projectx

    This will display the projectx code tree when you go to the source browser. The default without this line is to show only the top starting link. This may be omitted to keep the page simple if the page is too cluttered.
  • The single repository references in the [trac] section are removed:
    • Remove repository_dir = /srv/git/projecx/git/master
    • Remove repository_type = git
    The repositories in a multi-repository configuration are all defined under [repositories] exclusively.

Git post-commit hooks to update Trac:

File: /srv/git/projectx/git/master/hooks/post-commit
#!/bin/sh
REV=$(git rev-parse HEAD)
trac-admin /srv/trac/projectxy changeset added projectx $REV

File: /srv/git/projecty/.git/hooks/post-commit
#!/bin/sh
REV=$(git rev-parse HEAD)
trac-admin /srv/trac/projectxy changeset added projecty $REV
Note:
  • there is a single Trac instance /srv/trac/projectxy but two Git repositories: projectx and projecty.
  • These are executable scripts to be executed by Git.

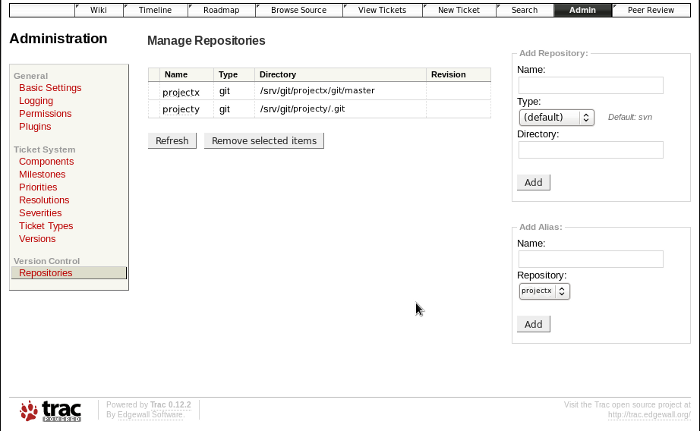

Trac Admin page for defining multiple repositories:

Trac Admin page for defining multiple repositories

Trac - Apache httpd web server integration:

Trac can be run using the stand-alone Trac daemon "tracd". This configuration shows the use of Apache with Trac.

File: /etc/httpd/conf.d/trac.conf
(Red Hat location)

  • This example performs no authentication:
    Alias /trac/ /var/www/cgi-bin/trac.cgi
    <LocationMatch /cgi-bin/trac\.f?cgi">
       SetEnv TRAC_ENV_PARENT_DIR "/srv/trac"
    </LocationMatch>
    <IfModule mod_python.c>
    <Location /trac>
        SetHandler mod_python
        PythonInterpreter main_interpreter
        PythonHandler trac.web.modpython_frontend
        PythonOption TracEnvParentDir /srv/trac
    </Location>
    </IfModule>

    Note: The path /var/www/cgi-bin/ is Red Hat specific.

    Restart Apache: service httpd restart

For more on Apache authentication see:

Repository Home Page:

The final touch is to create a homepage for your repositories so that they are easy to find, especially if you are hosting multiple reporitories. The default homepage for most major Linux distributions (Red Hat, Fedora, CentOS, Ubuntu, Debian) is /var/www/html/index.html Create a home page here or create a redirect to the Trac Wiki home page and post links there.

Redirect to the Trac Wiki

<META HTTP-EQUIV="Refresh" Content="0; URL=/trac/projectx">
Sample home page:

<html>
<head>
<title>Welcome to Project X</title>
</head>
<body>
<h1>Welcome to Project X</h1>

<ul>
<li> <a href="/trac/projectx">Trac Wiki</a> </li>
<li> <a href="/git-caching/">Git-web</a> </li>
<li> <a href="/jenkins">Jenkins</a> </li>
</ul>

</body>
</html>
Now add Continuous Build and Integration. See the YoLinux Jenkins tutorial.

Links:

Book imageBooks:

Distributed Version Control with Git [Kindle Edition]
Lars Vogel (Author)
A practical introduction into the Git version control system.

Amazon.com
Version Control with Git
Jon Loeliger (Author)
Powerful Tools and Techniques for Collaborative Software Development

Step-by-step ways to track, merge, and manage software projects, using Git.

Amazon.com
Pro Git
Scott Chacon (Author)
Visual explanations of the git concepts and methodology.

Step-by-step ways to track, merge, and manage software projects, using Git.

Amazon.com
Defect Tracking Tools Product Comparison Guide: Large Enterprise Edition
TiPS-IT Ziff Davis Media
Digital PDF Download

Amazon.com
Defect Tracking Tools Product Comparison Guide: Small / Mid Enterprise Edition
TiPS-IT Ziff Davis Media
Digital PDF Download

Amazon.com


    Bookmark and Share

Advertisements
